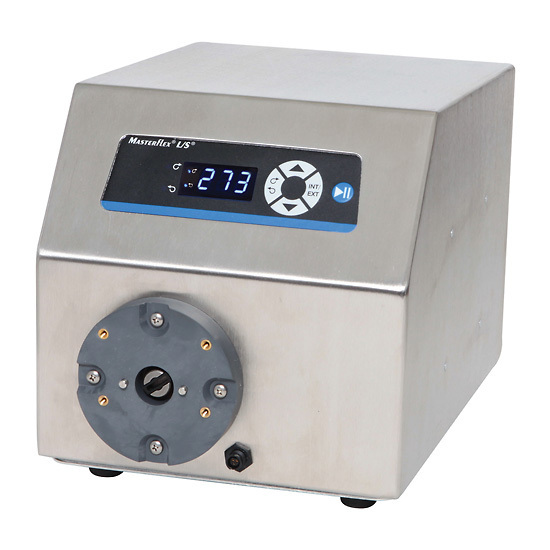

Easy-to-use drives offer precise speed control and digital display of rpm—NEMA 4X housings stand up to process and washdown applications. Flow rate 0.06 to 3400 ml/min (depends on drive rpm and tubing size) Four digit LED display shows motor rpm—confirm speed setting at a glance Integrated open-head sensor stops drive motor when pump head is opened Reversible motor—purge tubing before or after pumping; pump fluid in either direction LED indicators confirm motor direction Powerful motors let you stack 2 or 4 pump heads for increased flow rates and for multichannel applications Separate speed and power (on/off) control—maintain speed setting while turning pump on/off NEMA 4X (IP66) rated housing Remote control capabilities via a watertight connector on back of drive These accurate console drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering applications. Remote speed control requires cable assembly 77300-32. Operation of the integrated open-head sensor requires use of sensor-equipped L/S Easy-Load II pump heads 77200-30 or 77200-32. Maximum Flow Rate: 3400 ml/min Power: 90 – 260 VAC; 50/60 Hz; 2.2 A Description: Precision Process Drive, Stainless Steel, with Open-Head Sensor; 600 rpm Cat. No.: MFLX07528-40 Max. RPM: 600 rpm No. of Pump Heads Accepted: 2 Housing material: Stainless steel Plug type: US Open-head sensor: Yes Speed: Variable Cloud connected: No Drive length: 305 mm (12″) Motor hp: 1/10 Motor: 75 W Remote I/O: 4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure Reversible motor: Yes Type of pump heads accepted: Standard, Easy-Load, Easy-Load OHS, Easy-Load II, Easy-Load II OHS, High Performance, High Performance OHS, PTFE Tubing, PTFE Diaphragm, Cytoflow Digital dispensing: No Drive width: 229 mm (9″) Drive IP rating: IP 66 Control Type: Digital Variable Speed Drive height: 235 mm (9.25″) Pump series: L/S Voltage: 90 – 260 VAC Model: 07528-40 Frequency: 50/60 Hz Washdown capable: Yes Speed control: ±0.25% (1 rpm at 600; 0.1 rpm at 100 rpm) Current: 2.2 A Min. RPM: 6 rpm
