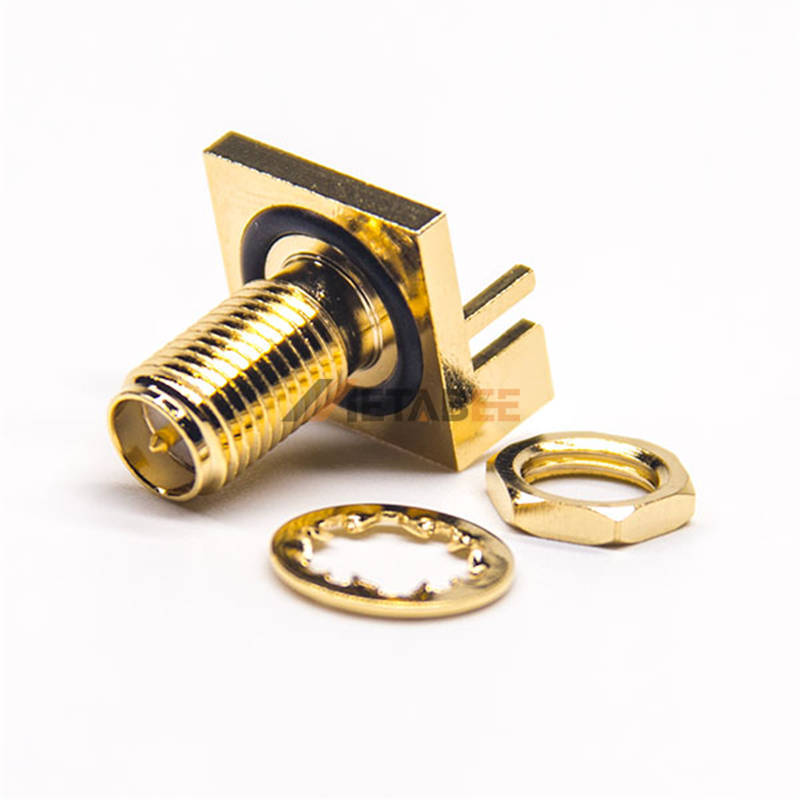

Right Angle Surface Mount Type SMT Reverse Polarity SMA Female Connector 50 Ohm Introduction This reverse polarity SMA female connector can help you boost signal transmission. We designed it with meticulous attention to detail. Its outstanding performance delivers reliability and stable connection. So, it’s an optimal choice to upgrade your RF connectivity. This RP-SMA female connector has many great features, including: Right Angle Surface Mount. This connector features a right-angle surface mount design. It enables easy installation on circuit boards or other electronic equipment. Reverse Polarity Design. This connector has an RP-SMA male interface. It’s compatible with various RP-SMA female connectors. Versatile Application. This right-angle RP SMA female connector is suitable for a variety of applications. For example, you can use it on RF connections or communication systems. Efficient Signal Transmission. This RP-SMA connector can provide high-quality signal transmission even in challenging environments. Main Specifications: General Information: Product No.: YC-612-1101 Product Series: SMA Connectors Brand: Metabee Gender: Female Orientation: Right Angle Number of Contacts: 1 Port Contact Termination: Solder Mount Method: PCB Mount Mount Feature: Surface Mount Fastening Type: Threaded Coupling Other Feature: None Materials and Plating: Body Material: Copper Body Plating: Gold-Plated Insulator Material: TEFLON Contact Material: Phosphor Contact Plating: Gold-Plated Electrical Performance: Impedance: 50 Ohm Frequency Range: 0-6 GHz VSWR: ≤1.5 Center Contact Resistance: ≦ 6.0 mΩ Max. (Milliohms max.) Outer Contact Resistance: ≤ 2.0 mΩ Max. (Milliohms max.) Insulation Resistance: ≧ 5*10³ MΩ (Megohms min.) Mechanical Performance: Coupling: 1/4-36 Threaded Contact Retention: 30 in. lbs. min. Durability: ≥ 500 Cycles Environmental Performance: Temperature Range: -65°C to 155°C Vibration: MIL-STD-202 Meth.204 Corrosion resistance: MIL-STD-202 Meth. 101 SMA Connector Interface Dimensions: Applications of this Right Angle Reverse Polarity SMA Female Connector: Telecommunication Infrastructure: antennas, cellular base stations, and satellite communications Wireless Connectivity: Wi-Fi routers, Bluetooth devices, and RFID applications RF Testing and Measurement: radar systems, instrumentation, and high-frequency testing equipment Aerospace and Defense: radar systems, satellite communications, avionics, and military communication equipment Medical Devices and Instrumentation: MRI machines, diagnostic equipment, and monitoring devices Internet of Things (IoT): smart sensors and home automation systems Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System Download the RF Connectors PDF Catalog: Metabee's RF Coaxial Connectors Catalog (PDF, 3.7 MB) Learn more about our RF Coaxial connectors. Factory pricing and exceptional product quality. Get a free quote now! Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF connectors.
